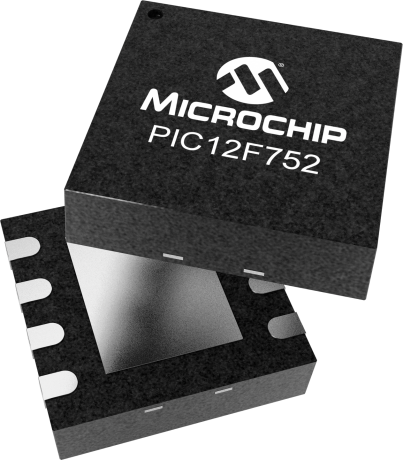

PIC12F752-I/P







Additional Features

• Flash Program Memory with self read/write capability
• Mid-Range Core, Internal 8MHz oscillator
• 2 x High Speed Analog Comparators (50nS)
• 1 x Capture-Compare-PWM (CCP)
• 4 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference,
• 1 x Dual Range 5-bit Digital-to-Analog Converter (DAC)
• Complementary Output Generator (COG): Complementary Waveforms from selectable sources
• Watchdog Timer (WDT)
• Power-On/Off-Reset, Brown-Out Reset (BOR)
• In Circuit Serial Programming (ICSP)
• High Current Source/Sink: 2 pins with 50 mA I/O, 4 pins with 25 mA I/O
• High Voltage PIC12HV752 variant (2.0V – user defined) with internal shunt regulator
• Wide Operation Voltage Variant ‘F’ (2.0V – 5.5V)
• eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)
